Uniquely defining a line for a vector in three-dimensional space is useful in a range of scenarios. In mechanical and civil engineering, they are needed to create models and analyse alignment. In computer graphics, they can be used to define paths for animations. In physics, they represent trajectories of particles and forces.
You should already know that a line in the \(x\)—\(y\) plane can be represented in the form \(y=mx+c\) where \(m\) is the gradient (or slope) of the line and \(c\) is the \(y\)-intercept. But how do we uniquely define a line in three dimensions (3D), where we need a third coordinate?
We can define lines in 3D in three different ways:
the vector equation
the parametric equation
the symmetric equation.
Vector equation of a line in 3D
The vector equation of a line is expressed using a position vector and a direction vector.

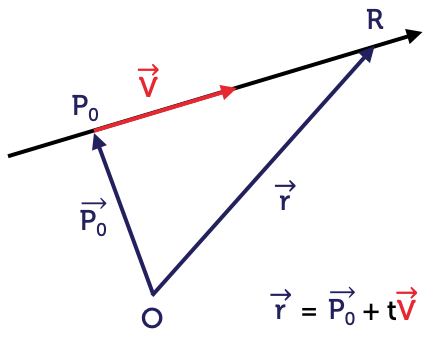

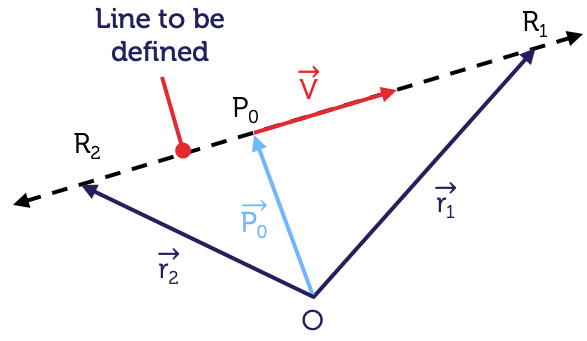

Consider the following figure.
Here:
Two vectors \(\vec{r_{1}}\) and \(\vec{r_{2}}\) point from the origin \(O\) to the points \(R_{1}\) and \(R_{2}\), respectively.
The line is drawn such that it intersects points \(R_{1}\) and \(R_{2}\).
\(\vec{V}\) is a vector along the line. It is the direction vector.
\(P_{0}\) is a point on the line, with \(\vec{P_{0}}\) being its position vector—that is, \(\vec{P_{0}}\) tells us where point \(P_{0}\) is relative to the origin \(O\).
The equation of the line, written in vector form, is:
\[\vec{r}=\vec{P_{0}}+t\vec{V}\]
where \(t\) is a constant, or \(t\in\mathbb{R}\).
What this means is that to get to any point \(\vec{r}\) along the line, we need to first get to the line by travelling along \(\vec{P_{0}}\). Then, we travel a distance \(t\) along the line in the direction of \(\vec{V}\).
To get from \(O\) to \(R_{1}\), we travel along \(\vec{P_{0}}\), then we travel a distance along \(\vec{V}\) given by \(\vec{r_{1}}=\vec{P_{0}}+t\vec{V}\) where \(t\) is a positive constant.
To get from \(O\) to \(R_{2}\), we travel along \(\vec{P_{0}}\), then we travel a distance along \(\vec{V}\) given by \(\vec{r_{2}}=\vec{P_{0}}+t\vec{V}\) where \(t\) is a negative constant.
The positive or negative \(t\) indicates the direction we are travelling in, relative to \(\vec{V}\).
Parametric equation of a line in 3D
Lines can broken down into their components and expressed using parametric equations. These equations indicate the coordinates of any point on the line as functions of the parameter \(t\), hence, "parametric".
Since there are three axes in 3D, we define three separate parametric equations.

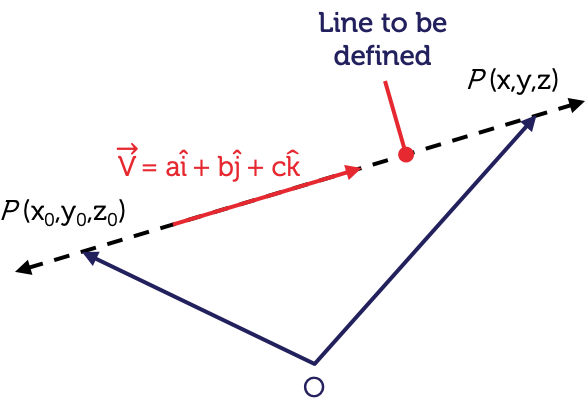

Let's look at the following figure.
Suppose we wish to find the line that goes through the point \(P_{0}(x_{0},y_{0},z_{0})\) in the direction of the vector \(\vec{V}=a\hat{i}+b\hat{j}+c\hat{k}\). A general point \(P(x,y,z)\) lies on the line.
We can define vector \(\overrightarrow{P_{0}P}\) using:
\[\overrightarrow{P_{0}P} = (x-x_{0})\hat{i}+(y-y_{0})\hat{j}+(z-z_{0})\hat{k}\]
This vector will be in the same direction as \(\vec{V}\) but will likely have a different magnitude. In other words, \(\overrightarrow{P_{0}P}\) will be a multiple of the direction vector \(\vec{V}\). So \(\overrightarrow{P_{0}P}=t\vec{V}\) where \(t\in\mathbb{R}\).
We can substitute \(\vec{V}\) into this equation to get:
\[\begin{align*} \overrightarrow{P_{0}P} & = t\vec{V}\\
& = t\left(a\hat{i}+b\vec{j}+c\vec{k}\right)\\
& = at\hat{i}+bt\hat{j}+ct\hat{k}
\end{align*}\] We can equate the components of this equation with the earlier one to get three parametric equations:
\[\begin{align*} \left(x-x_{0}\right) & = at\\
x & = x_{0}+at
\end{align*}\] \[\begin{align*} \left(y-y_{0}\right) & = bt\\
y & = y_{0}+bt
\end{align*}\] \[\begin{align*} \left(z-z_{0}\right) & = ct\\
z & = z_{0}+ct
\end{align*}\]
These are parametric equations of the line that contains the point \((x_{0},y_{0},z_{0})\) and has the direction vector \(\vec{V}=a\hat{i}+b\hat{j}+c\hat{k}\). The variable \(t\in\mathbb{R}\) is called a parameter.
Symmetric equation of a line in 3D
The symmetric equation eliminates the parameter \(t\) by solving the parametric equations for \(t\). This helps identifying points on a line without expressing it in terms of a parameter.
We start by rearranging the parametric equations so that \(t\) is the subject.
\[\begin{align*} t = \frac{x-x_{0}}{a}\quad t=\frac{y-y_{0}}{b}\quad t=\frac{z-z_{0}}{c} \end{align*}\]
The equation is symmetric in the sense that each coordinate is treated in a similar manner, highlighting the proportional relationships along the line.
Example 1 – finding equations of a line in 3D
Find the parametric and symmetric equations of the line that goes through the point \((3,2,3)\) and is in the direction of the vector \(2\hat{i}+\hat{j}-5\hat{k}\).
First, we can define the variables. The point is written in the form \((x_{0},y_{0},z_{0})\), so \(x=3\), \(y=2\) and \(z=3\). The vector is written in the form \(a\hat{i}+b\hat{j}+c\hat{k}\), so \(a=2\), \(b=1\) and \(c=-5\).
We can now substitute them into the equations to form the parametric equations.
\[\begin{align*} x & = x_{0}+at\\
& = 3+2t
\end{align*}\] \[\begin{align*} y & = y_{0}+bt\\
& = 2+t
\end{align*}\] \[\begin{align*} z & = z_{0}+ct\\
& = 3-5t
\end{align*}\]
To get the symmetric equation, we substitute them into the relevant equation.
\[\begin{align*} & \frac{x-x_{0}}{a} = \frac{y-y_{0}}{b} = \frac{z-z_{0}}{c}\\
\Rightarrow & \quad \frac{x-3}{2} = \frac{y-2}{1} = \frac{z-3}{-5}\\
\Rightarrow & \quad \frac{x-3}{2} = y-2 = \frac{z-3}{-5}
\end{align*}\]
Find the parametric and symmetric equations of the line that goes through the point \((1,3,2)\) in the direction of the vector \(\vec{V}=\hat{j}-2\hat{k}\).
Here, \(x_{0}=1\), \(y_{0}=3\), \(z_{0}=2\), \(a=0\), \(b=1\) and \(c=-2\). Thus, the parametric equations will be:
\[\begin{align*} x & = 1+0t\\
& = 1 \end{align*}\] \[y=3+1t\] \[z=2-2t\]
The symmetric equation will be:
\[\begin{align*} & x = 1 ;\, y-3=\frac{z-2}{-2}\\
\Rightarrow & \quad x = 1 ;\, y-3=-\frac{1}{2}z+1
\end{align*}\]
Find the direction vector of the line \(\dfrac{x-6}{2} = \dfrac{y-2}{-1} = \dfrac{z}{3}\).
The line is in symmetric form, so we can separate it out into components:
\[\frac{x-6}{2} = t\] \[\frac{y-2}{-1} = t\] \[\frac{z}{3} = t\] where \(t\in\mathbb{R}\).
These can be rearranged to give the parametric equations, in terms of \(x\), \(y\) and \(z\).
\[x=6+2t\] \[y=2-t\] \[z=3t\]
Finally, This may be written in vector form.
\[x\hat{i}+y\hat{j}+z\hat{k} = (6\hat{i}+2\hat{j}+0\hat{k})+t(2\hat{i}-\hat{j}+3\hat{k}) \]
This is a line through the point \((6,2,0)\) in the direction \((2\hat{i}-\hat{j}+3\hat{k})\).
Hence, the direction vector is \(\overrightarrow{V}=2\hat{i}-\hat{j}+3\hat{k}\). The direction vector of the line could be any multiple of this vector, such as \(4\hat{i}-2\hat{j}+6\hat{k}\).
A line passes through the points \(A(1,2,4)\) and \(B(3,-1,-2)\). Find the equation of the line in:
vector form
parametric form
symmetric form.
For part a, we need to find the vector along the line. Here, we will find vector \(\overrightarrow{AB}\) but it is also valid to find \(\overrightarrow{BA}\).
\[\begin{align*} \overrightarrow{AB} & = (x_{B}-x_{A})\hat{i}+(y_{B}-y_{A})\hat{j}+(z_{B}-z_{A})\hat{k}\\
& = (3-1)\hat{i}+(-1-2)\hat{j}+(-2-4)\hat{k}\\
& = 2\hat{i}-3\hat{j}-6\hat{k}
\end{align*}\]
Vector \(\overrightarrow{AB}\) is the direction vector along the line. We can now use either point \(A\) or \(B\) to find the equation of the line in vector form. Let's use point \(A\).
\[\vec{r}=(\hat{i}+2\hat{j}+4\hat{k})+t(2\hat{i}-3\hat{j}-6\hat{k})\]
where \(t\in\mathbb{R}\). This is the vector form of the line.
For part b, we equate the components to find \(x\), \(y\) and \(z\) in terms of \(t\).
\[\begin{align*} \vec{r} & = (1\hat{i}+2\hat{j}+4\hat{k})+t(2\hat{i}-3\hat{j}-6\hat{k})\\
x\hat{i}+y\hat{j}+z\hat{k} & = (1\hat{i}+2\hat{j}+4\hat{k})+t(2\hat{i}-3\hat{j}-6\hat{k})
\end{align*}\]
So:
\[x=1+2t\] \[y=2-3t\] \[z=4-6t\]
These are the parametric equations.
For part c, we solve the parametric equations for \(t\). First, rearranging them to make \(t\) the subject:
\[t=\frac{x-1}{2}\] \[t=\frac{2-y}{3}\] \[t=\frac{4-z}{6}\]
We can equate them to form the symmetric equation:
\[\frac{x-1}{2} = \frac{2-y}{3} = \frac{4-z}{6}\]
Exercise – finding equations of a line in 3D
Find the symmetric and parametric equations of the lines that satisfy the given conditions.
contains the point \((1,-1,2)\) with the direction vector \(2\hat{i}-2\hat{j}+3\hat{k}\)
contains the point \((3,4,-1)\) with the direction vector \(\hat{i}+\hat{j}+5\hat{k}\)
contains the point \((2,3,-1)\) parallel to \(\dfrac{x-1}{2}=\dfrac{y-3}{-1}=\dfrac{x+1}{3}\)
contains the points \((2,2,1)\) and \((1,1,3)\).
Parametric equations: \(x=1+2t\), \(y=-1-2t\) and \(z=2+3t\)
Symmetric equation: \(\dfrac{x-1}{2}=\dfrac{y+1}{-2}=\dfrac{z-2}{3}\)
Parametric equations: \(x=3+t\), \(y=4+t\) and \(z=5t-1\)
Symmetric equation: \(\dfrac{x-3}{1}=\dfrac{y-4}{1}=\dfrac{z+1}{5}\)
Parametric equations: \(x=2+2t\), \(y=3-t\) and \(z=-1+3t\)
Symmetric equation: \(\dfrac{x-2}{2}=\dfrac{y-3}{-1}=\dfrac{z+1}{3}\)
Parametric equations: \(x=1+t\), \(y=1+t\) and \(z=3-2t\)
Symmetric equation: \(\dfrac{x-1}{1}=\dfrac{y-1}{1}=\dfrac{z-3}{-2}\); or
Parametric equations: \(x=2+t\), \(y=2+t\) and \(z=1-2t\)
Symmetric equation: \(\dfrac{x-2}{1}=\dfrac{y-2}{1}=\dfrac{z-1}{-2}\)
