Using meters
Use this activity to reinforce your understanding of using meters to check voltage and current.
Follow the process stated below to perform the practical activity ' using meters'.
1. Preparation
Obtain your trainer's approval before commencing this practical activity.
Download and print the Word document using meters.doc (Word 768kb). This document provides step by step instructions that must be followed to complete the practical activity.
Access the following equipment:
- clamp ammeter

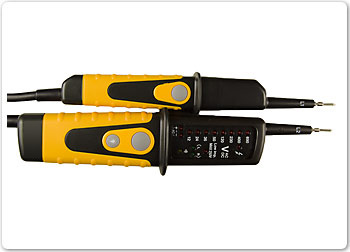

- LED voltage detector
- 3 phase motor
- 240 volt installation
- 240 volt variable power supply.
Note: see your trainer for advice on what electrical installation to use in performing this test.
2. Conduct the activity
Use the meters as described in the using meters document.
Record the findings of your tests.
3. Evaluate your results
Determine the condition of components/equipment..
4. Submit the activity
Present your completed work to your trainer for feedback.
Return equipment and clean up your work area.
Note: The completed Word document can be saved as evidence of work completed.
